Precision oblique bed iron compound tool tower machine

Price

Minimum Order Quantity

Inventory

Category

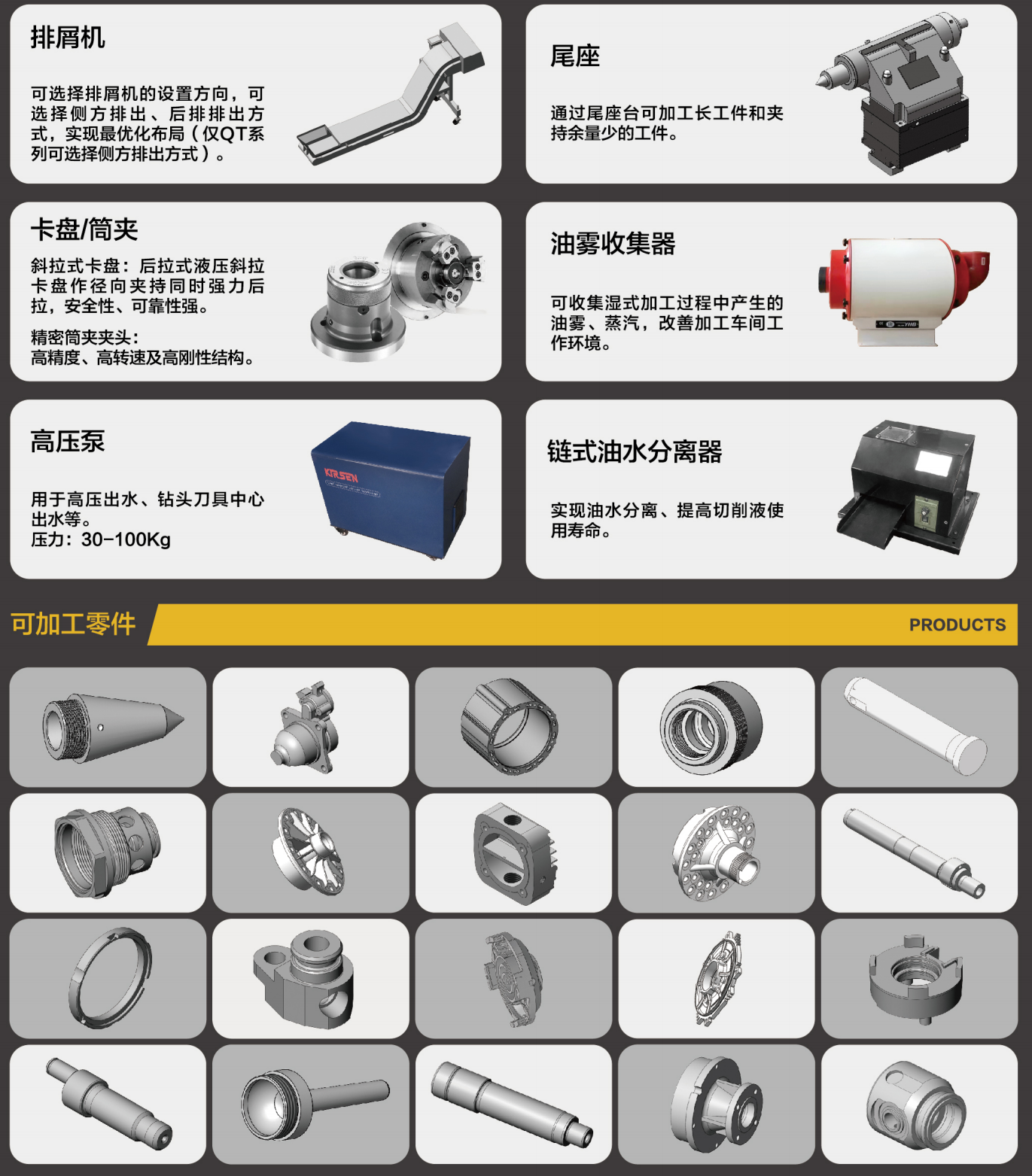

QT Series

QT Series Parameter Table
Project		Unit	QT50	QT150
Processing scope	Maximum workpiece diameter between centers	mm	φ400	φ580
	Maximum processing diameter	mm	φ100	φ360
	Maximum processing length	mm	300	500
	X/Z-axis travel	mm	300/300	200/500
	X/Z-axis rapid feed	m/min	30/30	30/30

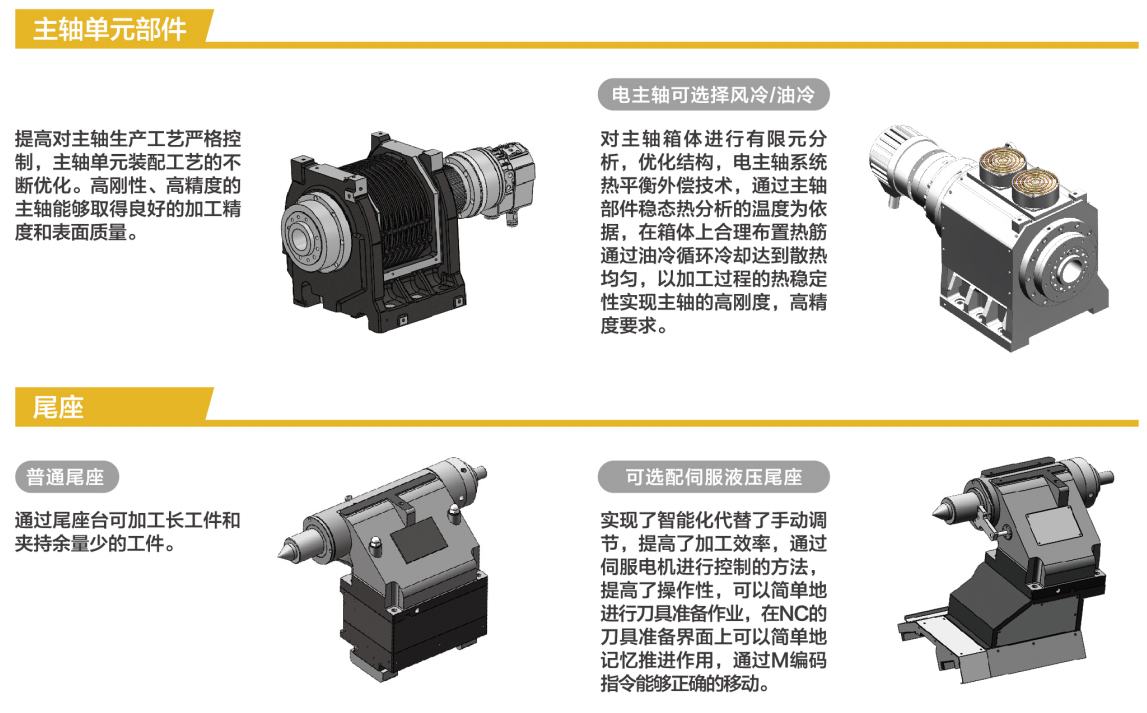

Main shaft	Main shaft maximum speed	RPM	5000	4000
	Main motor power	kw	3.7/5.5	11
	Main shaft through-hole diameter	mm	φ45/φ56	φ63
	Maximum bar diameter through	mm	φ34/Φ42	φ52
	Main shaft tip end		A2-4/A2-5	A2-6

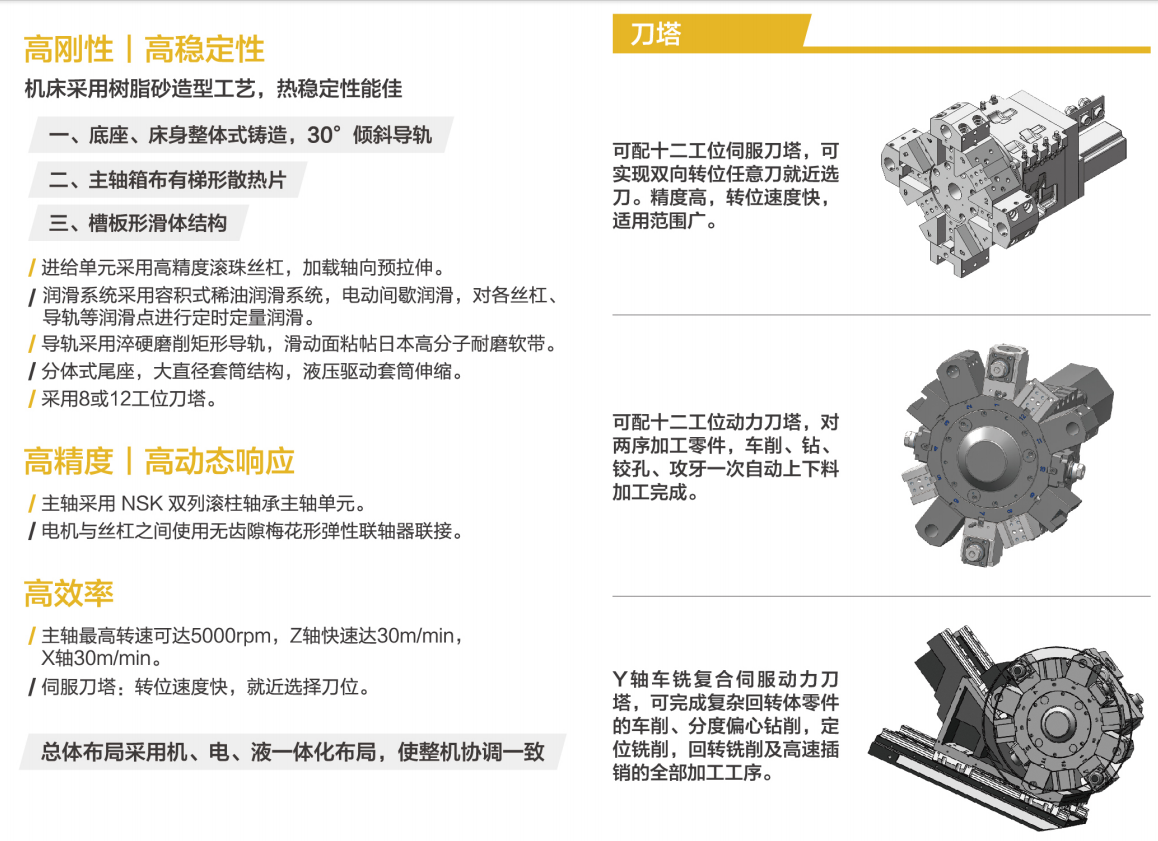

Type of knife support	form;		Pai刀/Dao Ta	Dota
	Outside diameter cutter	mm	20×20	25x25
	Boring tool bar	mm	φ32	φ32
Tailstock	Bore diameter	mm	Please translate the following text into English: /	100
	Sleeve taper hole		Please translate the following text into English: /	Morse 5#
	Sleeve stroke	mm	Please translate the following text into English: /	100
	Tailor's journey	mm	Please translate the following text into English: /	360
Cooling box capacity		L	60	190
Dimensions (L x W x H) without chip removal device		mm	1900X1500X1650	2480X1670X1710
Machine tool weight		t	1.8	4.5

M Series Specifications Table
Project		Unit	M15	M20	M20L
Processing scope	Maximum bed rotation diameter	mm	Φ480	φ580	φ580
	Maximum cutting diameter	mm	Φ280	φ360	φ360
	Maximum processing length	mm	300	300	500
	X/Z-axis travel	mm	160/300	200/300	200/500
	X/Z-axis rapid feed	m/min	30/30	30/30	30/30
Main shaft	Main shaft maximum speed	RPM	4000	4000	4000
	Main motor power	kw	7.5	11	11
	Main shaft through-hole diameter	mm	Φ56	Φ63	φ63
	Maximum bar diameter through	mm	Φ42	Φ52	Φ52
	Main shaft tip end		A2-5	A2-6	A2-6
Type of knife support	form;		Dota	Dota	Dota
	Outside diameter cutter	mm	25x25	25x25	25x25
	Boring tool bar	mm	φ32	φ32	φ32
Tailstock	Bore diameter	mm	80	100	100
	Sleeve taper hole		Morse 4#	Morse 5#	Morse 5#
	Sleeve stroke	mm	70	100	100
	Tailor's journey	mm	150	150	360
Cooling box capacity		L	120	150	150
Dimensions (L x W x H) without chip removal device		mm	2000X1550X1530	2100×1700×1630	2400×1700×1630
Machine tool weight		t	3	4	4.5
