Bi-spindle and double-turret lathe and milling compound lathe

Price

Minimum Order Quantity

Inventory

Category

MW Series

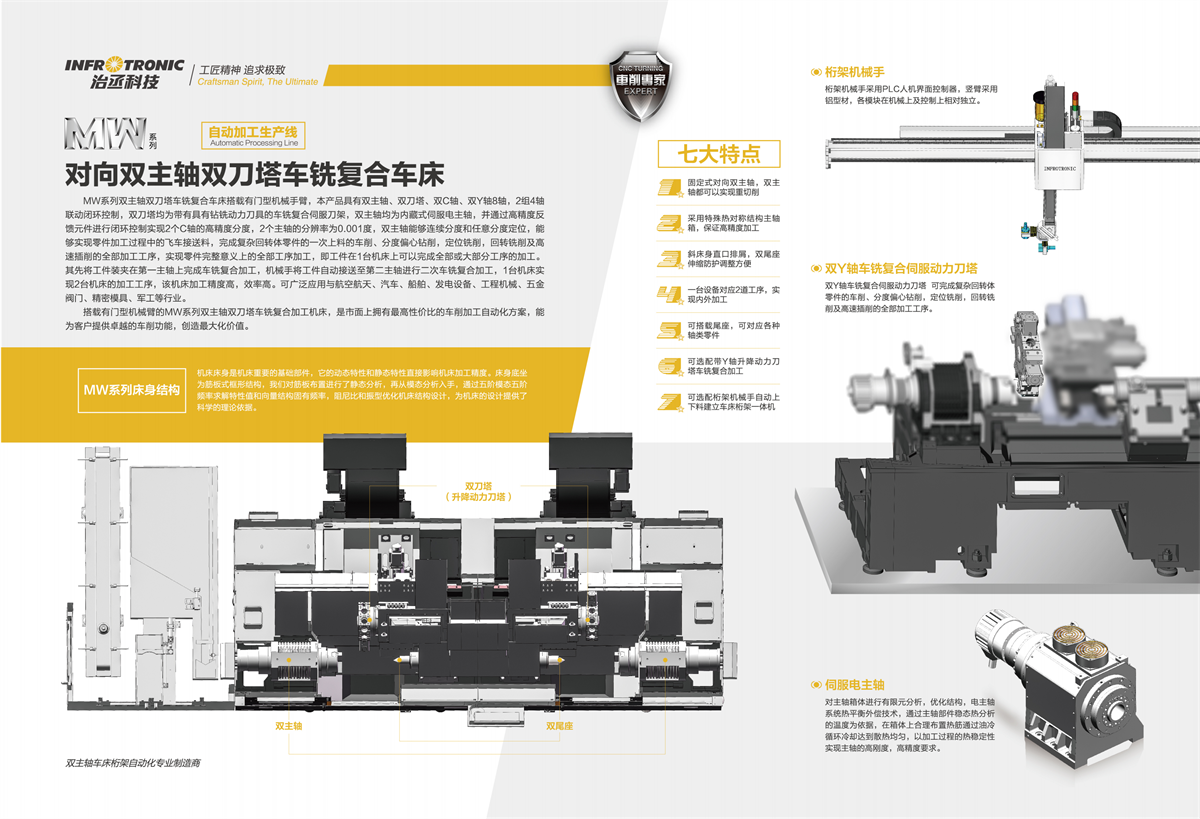

MW Series Facing Dual Spindles Dual Turrets CNC Lathe
Project		Unit	Technical parameters
Project		Unit	MW15	MW20	MW20L
Processing scope	Maximum bed rotation diameter	mm	φ580	φ580	φ580
	Maximum cutting diameter	mm	φ280	φ360	φ360
	Maximum processing length	mm	300	300	500
	Chuck face to center rest	mm	320	320	520
	X/Z-axis travel	mm	160/300	200/300	200/500
	X/Z-axis rapid feed	m/min	30/30	30/30	30/30
Main shaft	Main shaft maximum speed	RPM	4000	4000	4000
	Main motor power	kW	5.5(x2)	7.5/11(x2)	7.5/11(x2)
	Main shaft through-hole diameter	mm	φ56	φ63	φ63
	Maximum bar diameter through	mm	φ45	φ52	φ52
	Main shaft center height	mm	920	950	950
	Main shaft tip specifications		A2-5	A2-6	A2-6
Tailstock	Bore diameter	mm	80	80	80
	Sleeve cone hole	One	M4	Morse 5#	Morse 5#
	Sleeve stroke	mm	70	70	70
	Tailor-made trip	mm	150	150	360
Type of knife support	Form	One	Dota	Dota	Dota
	Outside diameter cutter	mm	25x25	25x25	25x25
	Boring tool bar	mm	φ32	φ40	φ40
Cooling box capacity		L	150(x2)	150(x2)	180(x2)
Machine tool exterior dimensions (length x width x height) (excluding chip conveyor)		mm	3650x1520x1530	3650x1550x1630	4152x1842x1630
Machine tool weight		t	6	7	7.8
