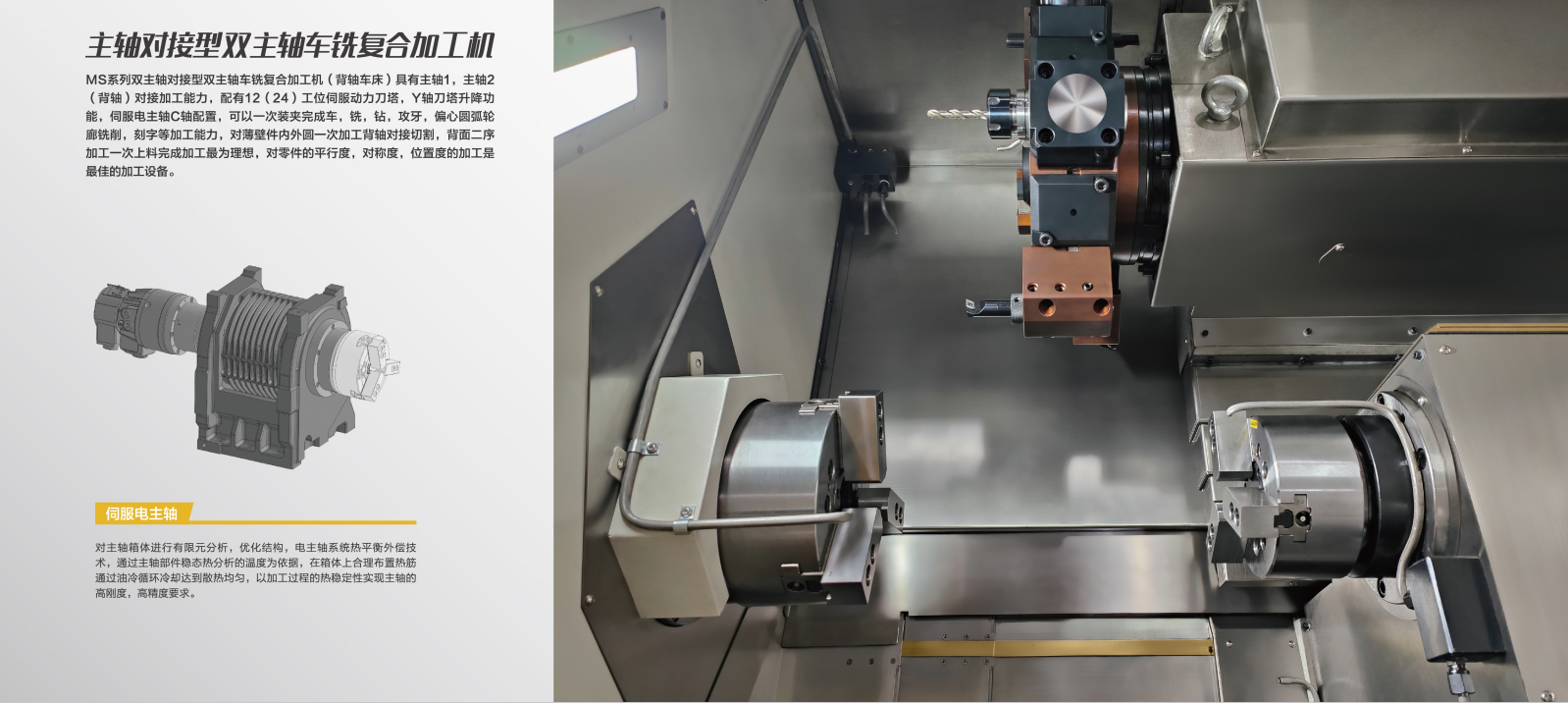

Main shaft docking type double main shaft lathe and milling compound machining machine

Price

Minimum Order Quantity

Inventory

Category

MS Series

Project			Unit	Machine tool parameters
Project			Unit	MS15	MS20	MS20L	MS25
Processing scope	Maximum turning diameter		mm	φ400	φ580	φ580	φ660
	Maximum processing diameter		mm	φ280	φ360	φ360	φ400
	X/Z Trip		mm	160/400	200/500	200/700	230/700
	X/Z maximum feed rate		m/min	30/30	30/30	30/30	30/30
	Chuck face spacing		mm	500	600	800	800
Main shaft	Main shaft tip	Main; Sub		A2-5	A2-6	A2-6	A2-8
	Main shaft tip	Main; Sub		A2-4	A2-5	A2-5	A2-6
	Main shaft maximum speed	Main and auxiliary	RPM	5000	4000	4000	3000
	Main shaft maximum speed	Main and auxiliary	RPM	5000	5000	5000	4000
	Main motor power	Main and auxiliary	kW	7.5	11	11	11/15
	Main motor power	Main and auxiliary	kW	5.5	7.5	7.5	7.5/11
	Main shaft through-hole diameter	Main Sub	mm	φ56	φ63	φ63	φ93
	Main shaft through-hole diameter	Main Sub	mm	φ46	φ56	φ56	φ63
	Maximum diameter of round bar processing	Main and auxiliary	mm	φ42	φ52	φ52	φ78
	Maximum diameter of round bar processing	Main and auxiliary	mm	φ32	φ42	φ42	φ52
X/Z-axis speed	X/Z-axis servo motor speed		RPM	3000	3000	3000	3000
Type of knife support	Dota			12 workstations	12 workstations	12 workstations	12 workstations
	Outside diameter cutting tool		mm	25x25	25x25	25x25	25x25/32X32
	Boring tool bar		mm	φ32	φ32	φ32	φ40
Cooling box capacity			L	150	180	180	200
Bed body form/inclination			-	30 degrees	30 degrees	30 degrees	30 degrees
Dimensions (L x W x H) (excluding chip conveyor)			mm	3200x1500x1650	3300X1700X1750	3500X1700X1750	3600X1800X1800
Weight			kg	4800	5500	5800	7000
