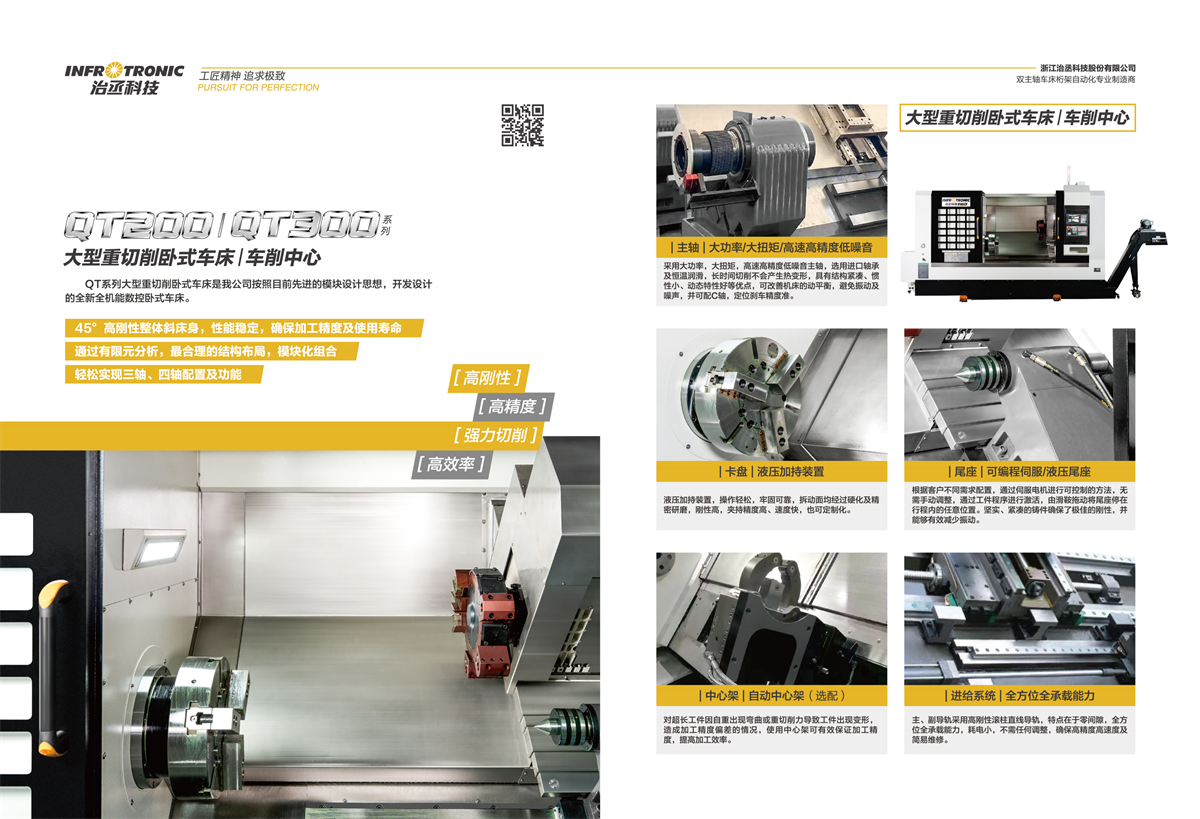

Large heavy-duty horizontal lathe|Lathe center

Price

Minimum Order Quantity

Inventory

Category

QT Series

Project	Unit		Series
Processing scope	Maximum bed rotation diameter	mm	φ660
	Maximum cutting diameter	mm	φ450
	Maximum processing length	mm	1000/1500
Main shaft	Chuck diameter	inch	Ten/十二
	Main shaft nose tip specifications		A2-8
	Main shaft through-hole diameter	mm	φ93
	Maximum bar diameter through	mm	φ82
	Main shaft maximum speed	RPM	1500
	Main motor power	kW	15/22
Axial feed	X/Z-axis travel	mm	350/1100(1600)
Axial feed	X/Z-axis rapid feed	m/min	24/24
Type of knife support	form;		Horizontal 12-station
	Outside diameter cutter	mm	32x32
	Boring tool bar	mm	φ50
Tailstock	Bore diameter	mm	90
	Sleeve taper hole		Morse 5#
	Sleeve stroke	mm	120
	Tailor's journey	mm	950
Processing accuracy			IT6
Machine tool exterior dimensions (length x width x height) without chip conveyor		mm	3600x2200x2360 4300x2200x2400
Machine tool weight		t	719.0

Project	Unit		Series
Processing scope	Maximum bed rotation diameter	mm	φ800
	Maximum cutting diameter	mm	φ600
	Maximum processing length	mm	1000/1500/2000
Main shaft	Chuck diameter	inch	15/18
	Main shaft nose tip specifications		A2-11
	Main shaft through-hole diameter	mm	φ105
	Maximum bar diameter through	mm	φ93
	Main shaft maximum speed	RPM	1200
	Main motor power	kW	22/25
Axial feed	X/Z-axis travel	mm	330/1100(2100)
Axial feed	X/Z-axis rapid feed	m/min	24/24
Type of knife support	form;		Horizontal 12-station
	Outside diameter cutter	mm	32x32
	Boring tool bar	mm	φ50
Tailstock	Bore diameter	mm	180
	Sleeve taper hole		M6#
	Sleeve stroke	mm	160
	Tailor's journey	mm	200
Processing accuracy			IT6
Machine tool exterior dimensions (length x width x height) without chip conveyor		mm	3900x2200x2500
Machine tool weight		t	9/10.5/12
