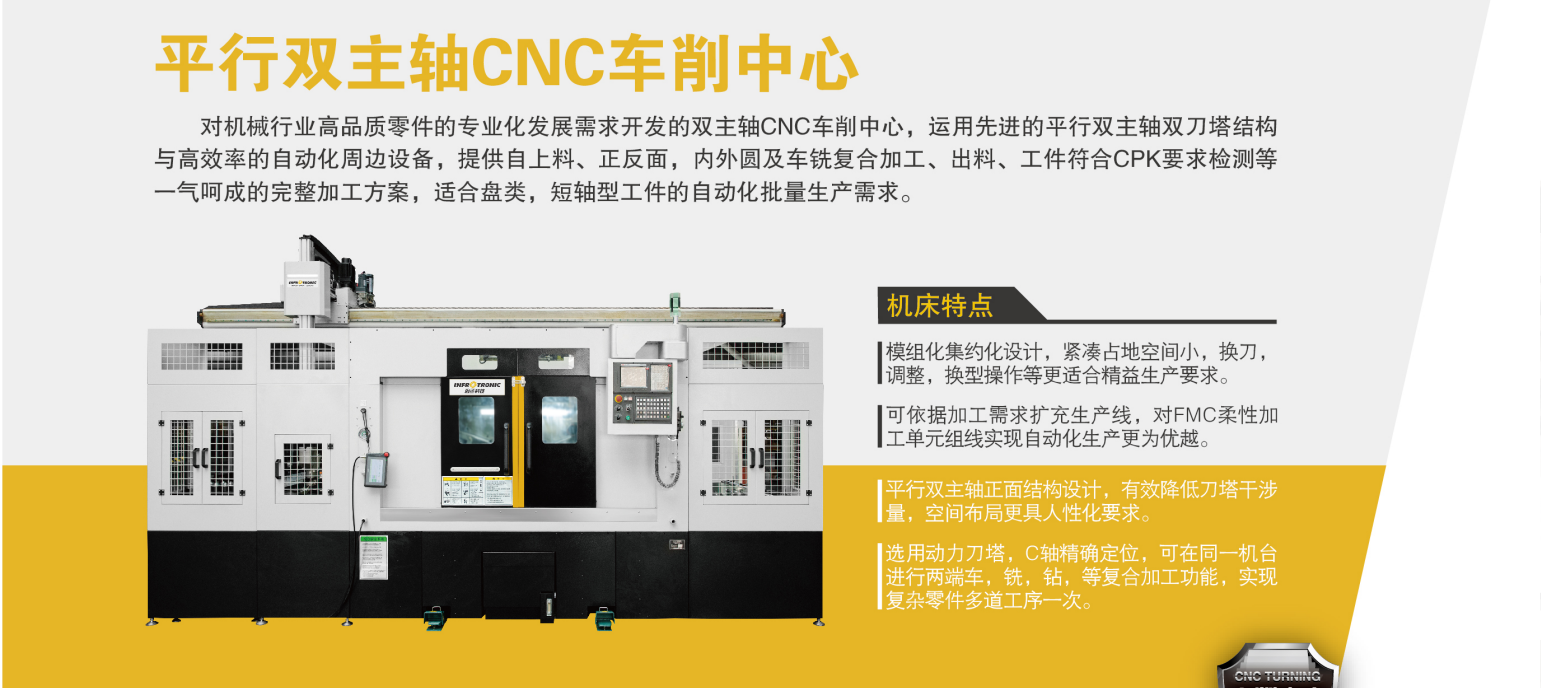

Parallel dual-spindle CNC lathe center

Price

Minimum Order Quantity

Inventory

Category

TT Series

Project		Unit	parameter
Project		Unit	TT10	TT15	TT20
Processing scope	Maximum bed rotation diameter	mm	φ180	φ210	φ320
	Maximum cutting diameter	mm	φ100	φ180	φ280
	Maximum processing length	mm	80	100	110
	X/Z-axis travel	mm	135/200	160/200	160/220
	X/Z-axis rapid feed	m/min	24/24	24/24	30/30
Main shaft	Main shaft maximum speed	RPM	5000	5000	4000
	Main motor power	kW	5.5	7.5	11
	Main shaft through-hole diameter	mm	φ45	φ56	φ63
	Main shaft center height	mm	950	950	1050
	Main shaft nose tip specifications		JIS A2-4	JIS A2-5	JIS A2-6
Type of knife support	Form	One	Servo Tower/ Power Tower	Servo Tower/ Power Tower	Servo Tower/ Power Tower
	Form	One	Servo Tower/ Power Tower	Servo Tower/ Power Tower	Servo Tower/ Power Tower
	Changeover time	security	One	One	0.2
	Outside diameter cutter	mm	20×20	25x25	25x25
	Boring tool bar	mm	φ32	φ40	φ40
X/Z-axis servo motor power		kW	1.2	1.8	1.8
X/Z-axis servo motor speed		RPM	3000	3000	3000
Cooling box capacity		L	160	180	200
Dimensions (length x width x height)		mm	2420x1600 x1750	2650x1700 by 1850	2900x2150 x1850

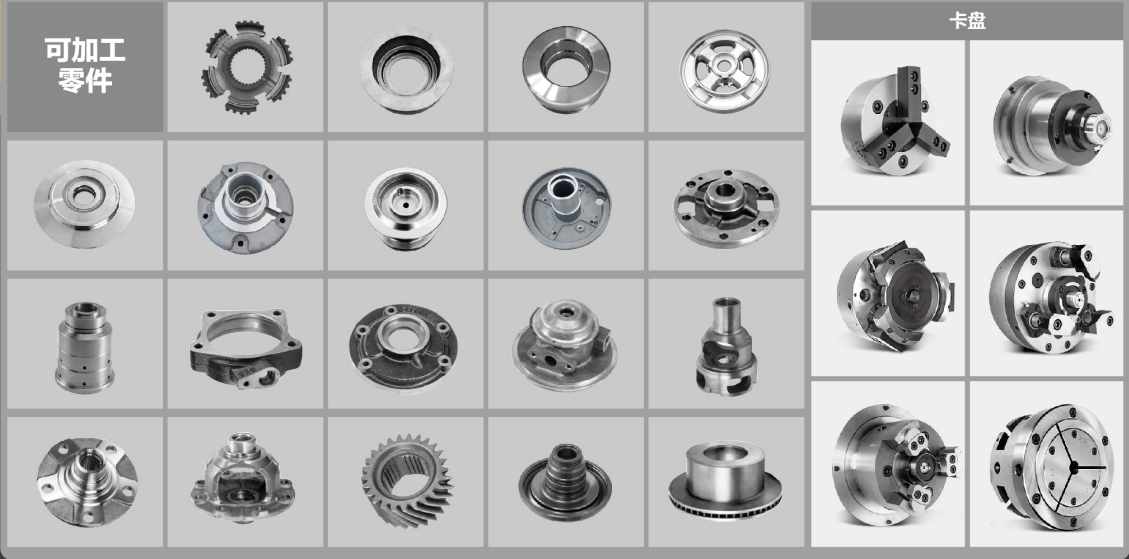

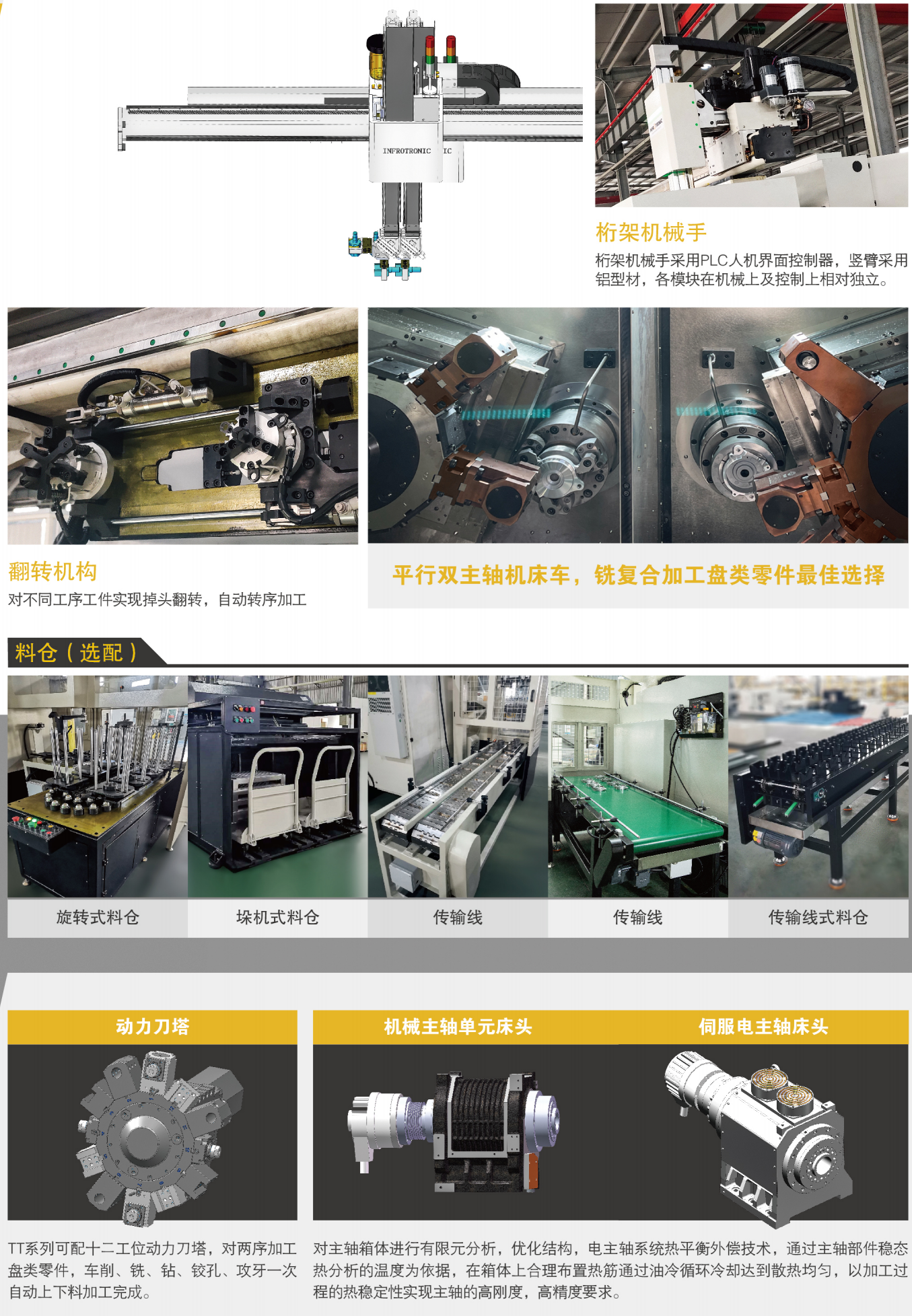

Three-axis truss robot
Project	parameter
Z-axis material (beam)	Structural steel
Z-axis drive method	Gear rack
Maximum Z-axis travel speed	180(m/min)
Z-axis drive method	Servo drive
Y-axis material (vertical arm)	Aluminum profile
Y-axis drive method	Gear rack
Maximum Y-axis movement speed	150(m/min)
Y-axis drive method	Servo drive
X-axis material	Aluminum alloy/structural steel
X-axis drive method	Gear rack
Maximum travel speed of the X-axis	60(m/min)
X-axis drive method	Servo drive
Location accuracy	±0.05(mm)
High-speed sunroof	Cylinder drive
Note: ①Z-axis: left and right movement; ②Y-axis: up and down movement; ③X-axis: front and back movement.
